SFA-PC605IPP-CT-WP

Full-Auto Printing Machine

A fully automatic screen printer designed for film substrates, featuring not only the conventional CCD camera auto-alignment function but also an added numerical control suitable for thin materials and hole plugging applications.

  • Vacuum pad type carrier mechanism (loading/unloading)
  • Precise alignment by image processor
  • Possible to handle thin material
Request Information
  • Design Concept
  • Features
  • Images
  • Technical Specifications

A fully automatic screen printer designed for film substrates, featuring not only the conventional CCD camera auto-alignment function but also an added numerical control suitable for thin materials and hole plugging applications.

  • Vacuum pad type carrier mechanism (loading/unloading)
  • Precise alignment by image processor
  • Possible to handle thin material

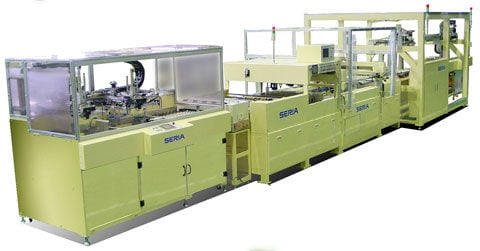

sfa-pc605ipp-ct-wp_1-2

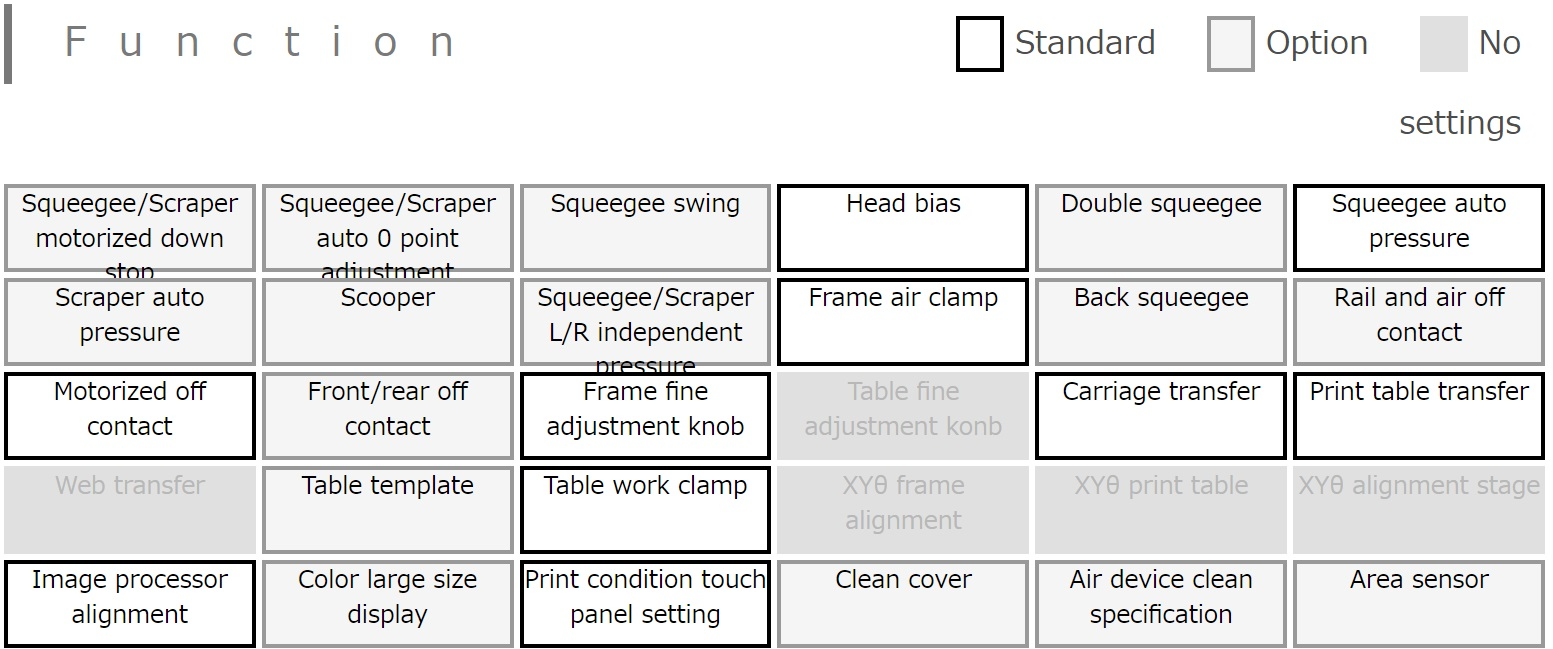

sfa-pc605ipp-ct-wp_2



Max. Work Size W610×D510 mm
Min. Work Size W300×D300 mm
Work Thickness 0.1-1.6 mm
Squeegee Pressure 0-80 kg
CCD Camera 2 sets
CCD Camera Resolution ±0.005 mm
CCD Camera View Range W9.0×H8.0 mm
