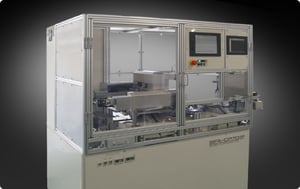

SFA-CP70IP

Semi-Automatic Screen-Printing Machine with CCD Camera (for chip register)
Compact Machine by downsizing
Production monitoring Management system by IoT
Quick Set up design
Request Information
seriasfacp701p-(1)
pe-sfa-3
pe-sfa-2
  • Features
  • Specifications
  • Download Product Brochures
  • Compact machine by downsizing
  • Production monitoring / management system by IoT （Option）
  • Quick set up design

OUTPUT tool enhancement (for future AI)

  • Compliant with global safety standards (Control circuit)
  • Load cell Monitoring system (Print pressure)
  • Adoption of safety circuit compatible with international standards
Work Size (W×D) (W)60×(D)70 mm or (W)70×(D)60 mm
Work Thickness t0.28-1.0 mm
Squeegee / Scraper Stepping Motor Drive
SQ./SC. Auto 0 Point Setting
Monitoring system by load cell
Frame Size / Thickness 1: (W)320×(D)320 mm t15-20 mm
2: (W)185×(D)255 mm t9.5 mm
3: (W)255×(D)185 mm t9.5 mm
* Compatible by attachment 1, 2
CCD Camera Alignment method: Image processor (CCD Camera)
Auto registration system
Safety Cover Aluminum Frame + PET
Safety Door Door (with switch) / with interlock
Machine Dimensions (W×D×H) (W)1475×(D)1030×(H)1800 mm (without signal tower)
Machine Weight Approx. 2000 kg
Power Supply 3-Phase 200V 50/60Hz 3.0 kW
Air Supply 50 L/min. 0.4 MPa (4.0 kgf/cm²)
SFA CP70IP 202306 EN
