SSA-DSV650

Semi-Automatic Double Side Vertical Screen Printer
Special double side resist printing model for printed circuit board
Vertical mechanism greatly saves installation space. Automatic line is also possible.
Reflect convenience functions and usability from history and achievement of SERIA screen printing machine
Request Information
1-1

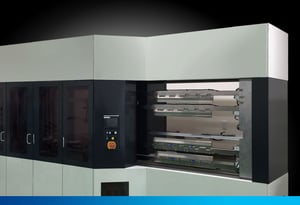

ssa-dsv650-(1)
  • Key Features
  • Applications
  • Features
  • Industries That Benefit
  • Technical Specifications
  • Download Brochure
  • SERIA's Proven Technology:
    With years of industry experience, the SSA-DSV650 incorporates SERIA’s advanced screen-printing technologies, ensuring reliability and superior performance.
  • Back Squeegee Function:
    The SSA-DSV650 comes equipped with a back squeegee function, offering precise control over the printing pressure on both sides of the PCB. This feature ensures consistent and uniform ink deposition, which is essential for achieving high-quality results. The back squeegee enables smoother operation and improves print consistency, making it an essential tool for precise and efficient double-side printing.
  • Vertical Mechanism for Space Efficiency
    The vertical setup minimizes the machine’s footprint, making it ideal for production environments with limited space.
  • Double-Side Resist Printing:
    Specially designed to handle double-sided resist printing on PCBs, delivering high precision and quality.
  • Automatic Line Compatibility:
    The SSA-DSV650 can easily integrate with automatic production lines, enhancing throughput and operational efficiency.

The SSA-DSV650 is designed for a variety of industries and applications, including:

  • PCB Manufacturing: Perfect for resist printing on printed circuit boards, ensuring consistent and accurate application for both sides.
  • Electronics: Ideal for producing PCBs, sensors, and other electronic components with precision.
  • Semiconductors: Suitable for precise printing applications required in semiconductor packaging.
  • Automotive: Reliable for high-precision printing applications in automotive components.
  • Double Slide Work Carrier:
    Enables easy removal and setup of workpieces during printing, increasing operational efficiency.
  • Squeegee Electric Down Stop:
    Adjustable down-stop stroke with parameter settings for enhanced control.
  • Auto Printing Pressure Control:
    Allows for precise and customizable printing pressure adjustments.
  • Electric Peel-Off Drive:
    Powered by CAM and servo motors for smooth and consistent peel-off performance.
  • PCB Manufacturing
  • Electronics
  • Semiconductors
  • Automotive
  • Medical Devices

Max. Work Size (W)650×(D)650 mm
Min. Work Size (W)250×(D)250 mm
Work Thickness t0.2-3.0 mm
*The thin board with less than 0.3 mm thickness may not be applicable depending on the board condition.
Max. Work Weight 4 kg
Print Margin (Space) Min. 5 mm (Squeegee Bias Unused)
It does not apply when you use squeegee bias.
Frame Size (W)1100×(D)1100 mm t30-40 mm
Frame Positioning X ±10 mm / Y ±10 mm
Print Direction From Top to Bottom
Peel Off Stroke 20 mm Air Cylinder Type
SQ. Back SC. Pressure 0.1-0.5 MPa Manual Setting with Pressure Gauge
SQ. Angle ±30°
SQ. Speed 25-250 mm/sec Parameter Setting
SQ. Stroke 800 mm
Coat Direction Print from Bottom to Top
Coat Pressure 0.1-0.5 MPa with Pressure Gauge
Coat Speed 25-250 mm/sec Parameter Setting
Machine Dimensions (W)3917×(D)1145×(H)2232 mm
Machine Weight (Approx.) 2000 kg
Power Supply 3-Phase AC 200V 60Hz 1 kW
Air Supply 50 L/min 0.55 MPa



Other Specifications

Double Slide Work Carrier Work Removing and Setting is Possible in Printing
SQ.Electric Down Stop Down Stop Stroke with Parameter Setting
SQ.Auto Printing Pressure Control Printing Pressure Control with Parameter Setting
Peel-Off (Electric Drive) CAM and Servo Motor Driving

SSA DSV650 R 202308 EN

Why Choose the SSA-DSV650?

Precision
The SSA-DSV650 ensures high-precision double-side resist printing, ideal for PCBs and other electronic components.
Space-Efficient Design
With its vertical mechanism, it maximizes available space in your production area, ideal for compact factory floors.
Versatile & Flexible
From ball mounting for semiconductors to fine-line printing for flexible circuits, the PEPIO series is versatile across industries and applications.
Improved Control
Back Squeegee Function for Improved Control: The back squeegee function ensures precise pressure application for uniform ink deposition, resulting in consistent and high-quality prints.
Reliability
Built on SERIA's trusted legacy of performance and innovation, the SSA-DSV650 is designed for durability and consistent results.
enhanced efficiency
Unlock enhanced efficiency and precision with the SSA-DSV650, a semi-automatic double side vertical screen printer specifically designed for printed circuit board (PCB) applications.
