SLC-1200N

Emulsion/Film Coating Machine

This unit is designed for applying film onto screens. Traditional film application requires separate units for pasting and emulsion, but the [SLC-N] series allows for both processes to be performed within a single unit

Request Information
  • Design Concept
  • Features
  • Images
  • Performance Specifications

This unit is designed for applying film onto screens. Traditional film application requires separate units for pasting and emulsion, but the [SLC-N] series allows for both processes to be performed within a single unit.

  • Film pasting function
  • Bucket pressure left/right control function
  • Carriage AC servo & timing belt drive
  • User friendly design and high operability
  • Numerical control operating condition (only with parameter model)

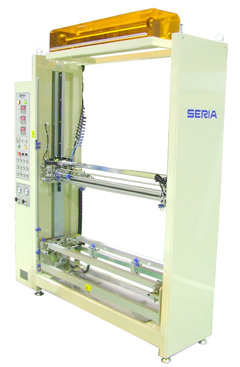

slc-1200n_1 (1)



Max. Frame Size W1000 × H1200 mm
Min. Frame Size W450 × H650 mm
Frame Thickness 20t - 40t mm
Coating Speed 0.3 - 4.5 m/min
Film Width Max. 800 mm
Power Supply 1φ AC100V 50/60Hz 0.4 kW
Compressed Air 30 liters/min (0.5 MPa)
Dimensions W1795 × H2195 × D480 mm
Weight 300 kg
