SSA-PC660A

Semi-Auto Printing Machine for PC
To meet the electronics industry's growing need for higher density, advanced printing quality is essential. With numerical control of printing parameters, consistent high-quality results are achieved without requiring specialized skills or experience. The unit also includes innovative features and a user-friendly semi-automatic screen printer for ease of use.
Request Information
  • Design Concept
  • Features
  • Images
  • Performance Specifications
In response to the electronics industry's demand for increased density, high-level printing quality is required. Numerical control of printing parameters enables high-quality printing without the need for skill or experience. Additionally, the unit comes equipped with unique functions and a user-friendly semi-automatic screen printer feature.
  • Table vertical slide system
  • Corresponding from thin to thick material
  • Table positioning by magnet chuck
  • Improved accuracy and quiet operation by frame up/down servo
  • Print parameter setting by touch panel

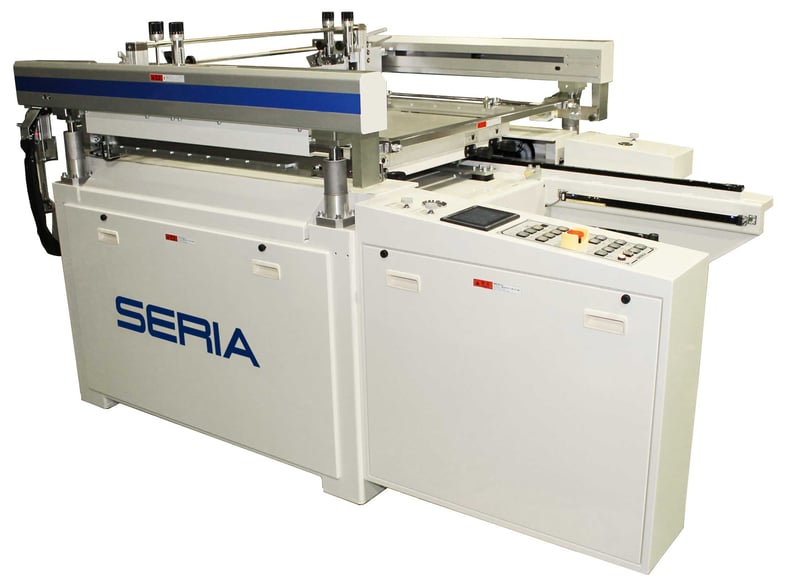

ssa-pc660a-(1)



Max. Work Size W600×D600 mm (varies depending on the thickness of substrate)
Work Thickness 0.1t-2.3t mm
Work Weight Max. 5 kg
Max. Frame Size W1100×D1100 mm
Min. Frame Size W600×D600 mm
Frame Thickness 30t-40t mm / 20t-30t mm (with Spacer)
Frame Holders Support at Front and Rear Side (Front: Swing Type)
4 Position Pneumatic Clamp + Manual Knob at Front and Rear Side Each 2 Positions
Frame Bar Holder Rear Size Pneumatic Clamp
Peel Off 0-15 mm
Peel Off System Cam and AC servo motor drive (flat when ink coat)
Squeegee Pressure 6-80 kg
Squeegee Adjustment 45 mm
Squeegee Lift 40 mm
Squeegee Angle 60°-90°
Squeegee Bias Angle ±5°
Squeegee Speed 5-500 mm/sec
Squeegee Stroke 800 mm
Scooper Unit Type
Clearance Adjustment 0-15 mm (Motorized)
Sub-Lift Volume 330 mm (Screen Frame Auto Lock at Top End)
Print Table Size W850×D900 mm
Vacuum Area W600×D600 mm
Vacuum Hole Diameter / Pitch φ1.4 mm / 20 mm
Table Fine Adjustment Method By Three Position Nucri-Knob at the Front
Table Height 940 mm
Weight 1200 kg
Power Supply 3φ AC200V 50/60Hz 2 kW
Compressed Air 50 liters/min. (0.54 MPa)
