- Design Concept
- Features
- Technical Specifications

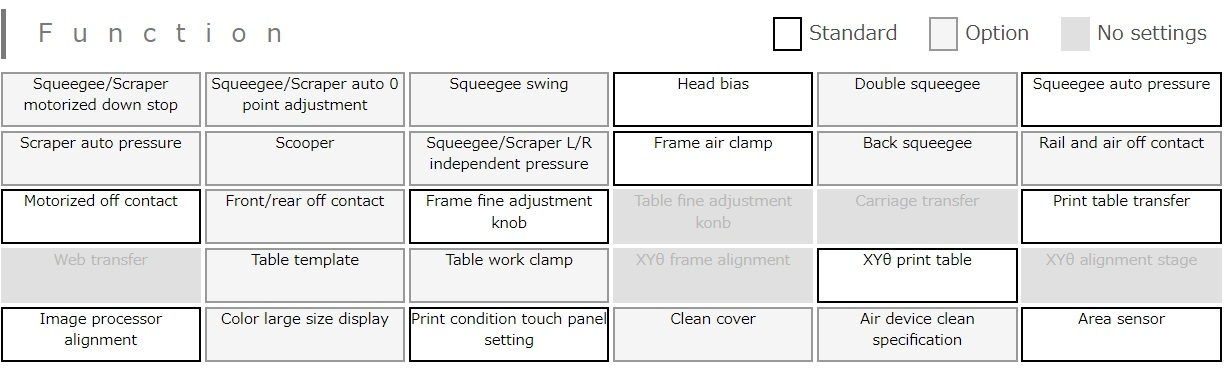

- Functions
- Images
Our top-selling semi-automatic screen printer features a CCD camera, capable of printing ultra-fine patterns to meet the demands of increasing electronic equipment density. It offers excellent operability and, with numerical control, eliminates the need for skilled experience in printing operations.
- Table vertical slide system
- Corresponding from thin to thick material
- Table positioning by magnet chuck
- Improved accuracy and quiet operation by frame up/down servo
- Print parameter setting by touch panel
| Max. Work Size | W600×D600 mm (varies depending on the thickness of substrate) |
| Work Thickness | 0.1t-2.3t mm |
| Work Weight | Max. 5 kg |
| Max. Frame Size | W1100×D1100 mm |
| Min. Frame Size | W600×D600 mm |
| Frame Thickness | 30t-40t mm / 20t-30t mm (with Spacer) |
| Frame Holders | Support at Front and Rear Side (Front: Swing Type) 4 Position Pneumatic Clamp + Manual Knob at Front and Rear Side Each 2 Positions |
| Frame Bar Holder | Rear Size Pneumatic Clamp |
| Peel Off | 0-15 mm |
| Peel Off System | Cam and AC servo motor drive (flat when ink coat) |
| Squeegee Speed | 5-500 mm/sec |
| Squeegee Stroke | 800 mm |
| Scooper | Unit Type |
| Clearance Adjustment | 0-15 mm (Motorized) |
| Sub-Lift Volume | 330 mm (Screen Frame Auto Lock at Top End) |
| Print Table Size | W850×D900 mm |
| Vacuum Area | W600×D600 mm |
| Vacuum Hole Diameter / Pitch | φ1.4 mm / 20 mm |
| Table Fine Adjustment Method | By Three Position Nucri-Knob at the Front |
| Table Height | 940 mm |
| Weight | 1200 kg |
| Power Supply | 3φ AC200V 50/60Hz 2 kW |
| Compressed Air | 50 liters/min. (0.54 MPa) |
.jpg?width=300&name=ssa-pc660a-(1).jpg)
