Lithrone G40P advance Perfector

Your pressroom "Swiss Army Knife"
Unmatched Versatility and Performance The G40 advance is the top evolution in sheetfed offset printing.
Eco-Friendly Efficiency Built to reduce the carbon footprint, the G40 advance lowers energy use, waste, and consumables.
Upgrades for Maximum ROI New upgrades boost ROI with improved feeders, faster automation, and enhanced print quality through the Komorimatic Dampening System.
VISUALIZATION

Link production processes and monitor operations.

Automation
Automatic job linking between prepress, press and postpress
An inexpensive, quick and easy way to build beautiful responsive website pages without coding knowledge
Optimization
Digitalization of process management, for optimization overall production
Mono Clouds
g40padvance-8
  • Description
  • Features
  • Technical Specifications
  • Download Brochures

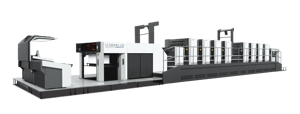

Komori's most versatile press, the Lithrone G40P advance, enables high-quality two-sided printing in one pass and straight multicolor printing in the same platform.  Exceptional feeding and delivering, world-class registration and unparalleled automation make Komori presses stand out among the rest.

Komori's unique sheet transport with high-performance perfecting mechanism, configured with three double-size cylinders, and stablizing lower unit air control affords stress-free sheet transfer and two-sided printing at 15,000 sheets per hour. Minimal sheet movement along with a small number of gripper changes, reduces marking, lessens curling, and assures exceptional register accuracy.





In addition, Komori's robust automation system, including the KHS-AI integrated control system, the benderless Full-APC system*, and paper size presets, slash the need for overruns and makeready sheets dramatically cutting lead time.

Superb performance with heavy stock in either single-sided or double-sided printing mode means that a variety of stunning high added value printing effects can be obtained with special inks and overprint varnish.

The Lithrone G40P advance is a machine of matchless flexibility that addresses a variety of needs at the highest level with high order print quality as well as outstanding productivity and profitability.


  • High-Quality Two-Sided Printing: Prints both sides in a single pass with multicolor capability on the same platform.
  • Exceptional Feeding and Delivering: World-class registration and advanced automation ensure seamless operation.
  • Stress-Free Sheet Transfer: Unique sheet transport system with three double-sized cylinders and air control for smooth, precise transfers.
  • High-Speed Performance: Prints up to 15,000 sheets per hour with minimal marking, curling, and gripper changes.
  • Advanced Automation: Integrated KHS-AI control system, benderless Full-APC, and paper size presets reduce makeready sheets and lead time.
  • Versatile Stock Handling: Handles heavy stock with ease for stunning special ink and varnish effects.
  • Unmatched Flexibility: Designed to meet diverse printing needs with exceptional quality, productivity, and profitability.
Number of colors 4-10 units
Curing methods Conventional, HUV, LED-UV
Maximum print speed 15,000sph
Maximum sheet size 28-11/32" x 40-9/16"
Minimum sheet size 14-3/16" x 20-15/32"
Sheet thickness range .0016"-.0118" / .0024"-.0236"
